Flip Surface Orientation

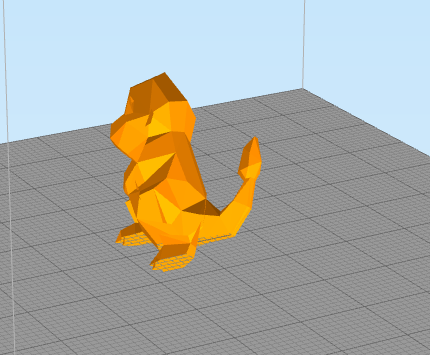

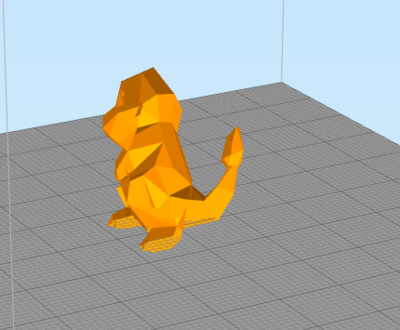

The most common repair feature I use in day-to-day printing I would say I use is to Flip a surface feature. To access this feature, go to Repair-> Flip Surface Orientation-> then click on the surface of the model you'd like to flip. The part looks different, so right away you know there's an issue.

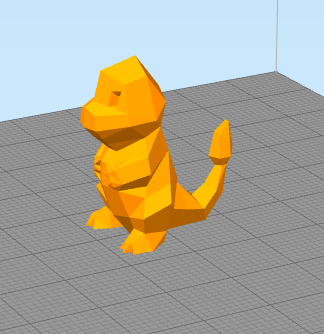

- Screen Shot 2015-01-26 at 2.08.43 PM.png (61.17 KiB) Viewed 3271 times
Merge all outlines into a single solid model (Advanced Tab FFF Settings) - I've talked about this feature for the Vase mode tip of the day, but for other parts it can be useful as well. This feature in the software will slice the model taking all of the outer most perimeter outlines. For instance, if you had a model that was a block with screw-holes in it, but had "Merge all outlines into a single solid model" on, the holes would not show up.
In addition, Merge all outlines into a single solid model is good for thin-wall printing if you'd like to ensure that one perimeter outline is printed. That way you're only printing the outer perimeter, not the outer and inner.
For the rest of the repair features, I would advise for looking at the tutorial on the tutorials page for Repair features.
Also, one last thing is to use the Identify Non-Manifold Edges option, which will highlight in red problematic areas that show where the mesh is either not "water-tight" or has extra/unwanted surface faces that are causing conflict.
Source: http://www.simplify3d.com/support/tutor ... sh-errors/Repair Normals – This will recalculate the normal vectors for your model to help prevent issues where the normal is facing the incorrect direction
Repair Flipped Triangles – The software will analyze your model and look for any surfaces where a triangle appears to be facing the wrong direction. Typically all connected triangles are facing the same direction and this option will help correct those issues.
Flip Surface Orientation – Using the Repair Flipped Triangles tool is great, but you may run across a scenario where all of your triangles are pointing the same direction, but it is the wrong direction! In this case, you can use the flip surface orientation option. You just click the surface you want to flip and all of the triangles attached to that surface will be reversed.
Remove duplicate triangles – This will look through your model and remove any duplicate overlapping triangles
Remove orphaned triangles – Any triangles that are unattached to the rest of the model will be deleted
Note that these tools will only alter the mesh as it exists within the software. It won’t make any changes to your original STL file. If you want to save your work you can go to File > Export STL to create a new repaired STL file.
