jdub1981

You are correct sir, I was just going through the first process when I realized it could all be done in 1 process. I scaled the model down and this print should finish in approximately 1h17m. If anyone else is interested in doing something similar to this just ask, it is entirely possible that you a...

jdub1981

ZFaceTopDown.JPG ZFaceSideview.JPG I am trying to print a 3d scanned face of my neice. I have successfully printed a version of my son but I only used a single process. What I have done thus far is split the original scan down to her chin and beginning of her hair line in order for the print to hav...

jdub1981

Ive always thought the clicking noise meant the plastic was grinding inside the extruder so i would bump the temp up 5° till it stopped. Today i dropped the temp down to 185°C and i got no clicking and its printing the model above. Ive scaled the model down considerably and trying the first set of s...

jdub1981

Incease the Lower Vertical Separation Layer variable. Also try a lower Support Infill Percentage, and also utilize the Dense Layer feature. The lower infill percentage should allow for easier removal of lower supports. The Dense Layer at the top of the support will create a suitable raft or printin...

jdub1981

Incease the Lower Vertical Separation Layer variable. Also try a lower Support Infill Percentage, and also utilize the Dense Layer feature. The lower infill percentage should allow for easier removal of lower supports. The Dense Layer at the top of the support will create a suitable raft or printin...

jdub1981

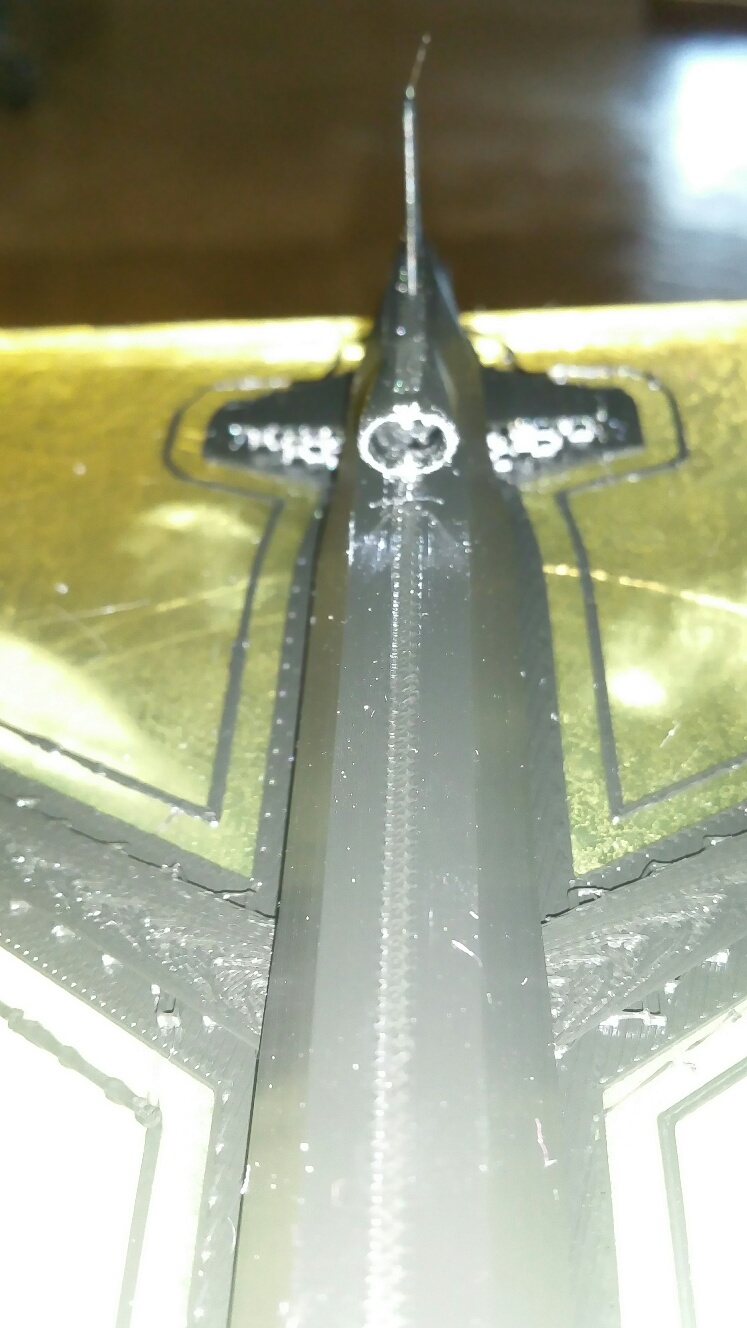

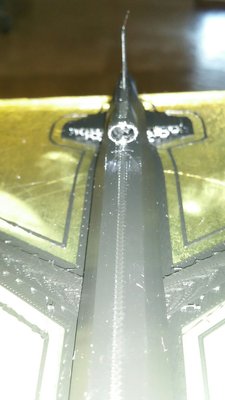

top side

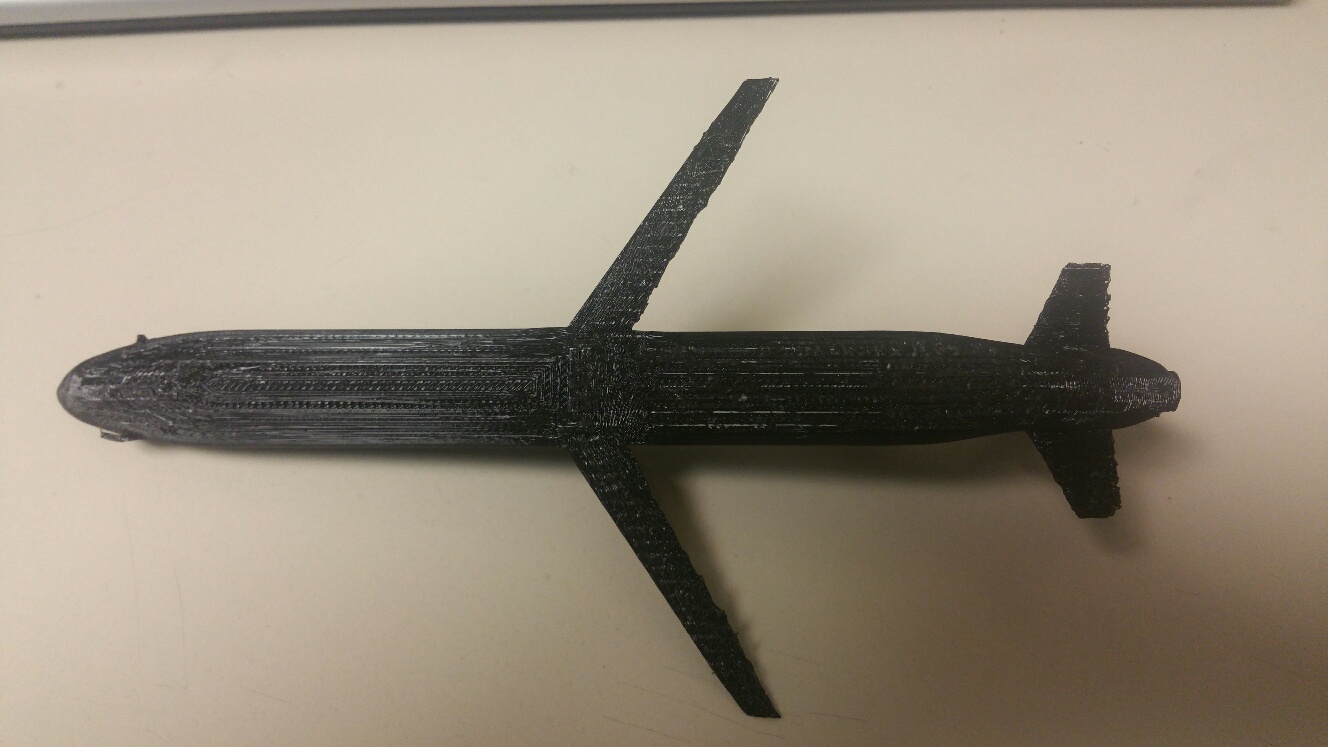

Bottom side...support not easily breakable.

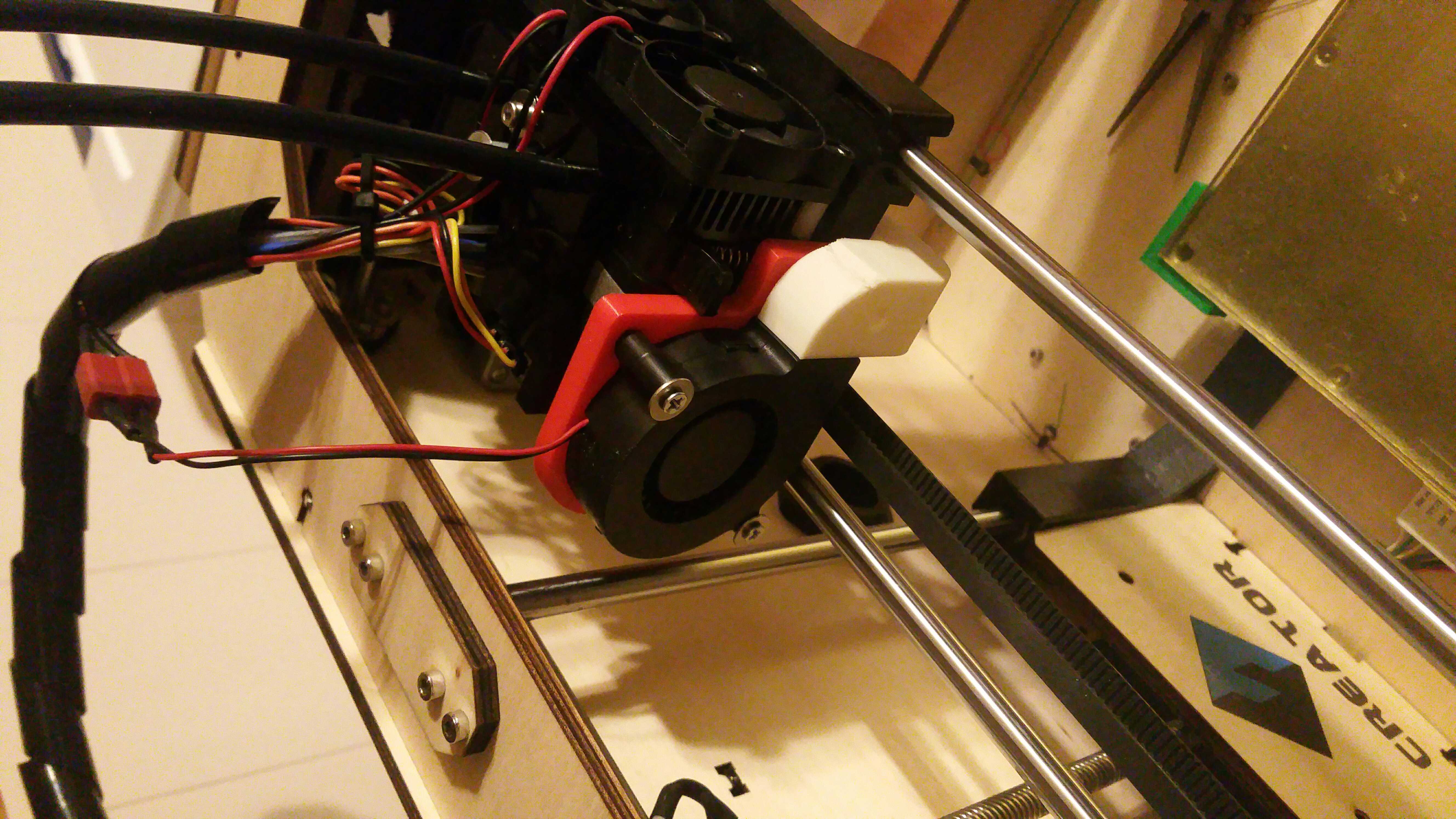

Any suggestions? Im tempted to print without support since ive recently added a cooling fan for PLA prints.

jdub1981

Ive printed 2 large models with absolutely fantastic results at a .1 layer height. The problem is that the bottom section that faces the build platform is just as important as the top section. The support is doing fine at supporting the sections that float above the platform but are leaving absolute...

jdub1981

Not sure if the issue i WAS having is the same as the op's but by simply adding .1 to the horizontal size compensation and then previewing again I was able to get the very thin pieces of my part to preview correctly and then print correctly.

jdub1981

My last ABS print as of last night printed on high settings, with support, no raft, layer height of 0 .10 on glass build plate. 1st layer height: 90% 1st layer width: 100% 1st layer speed: 50% 230c and 110c Speeds: 3600mm/min 50% 80% 4200mm/min 1200mm/min Print finished in 4 hours with fantastic res...

jdub1981

Ive never upped a photo to this site before, hopefully this comes through.
