barnwell

Perhaps printing with raft and 1 layer space then printing the first layer of the model with a width of more than 100% (maybe 200%) and first layer speed much slower?

Just a thought.

barnwell

anybody got any thoughts on this?

barnwell

I tried it and it works of course.

BUT Why is the order important and why does this work with 2 or 3 solid layers?

barnwell

: Slicer Layer 2 and 3

Here is a picture of output from slic3r that shows layer 2 (solid layer) orthogonal (at right angles ) to layer 3 (inner layer at 25%)

barnwell

layer direction.factory: factory file; (33.19 KiB) Downloaded 347 times

I thought I attached the factory file But it doesn't seem to be there Hummm....

barnwell

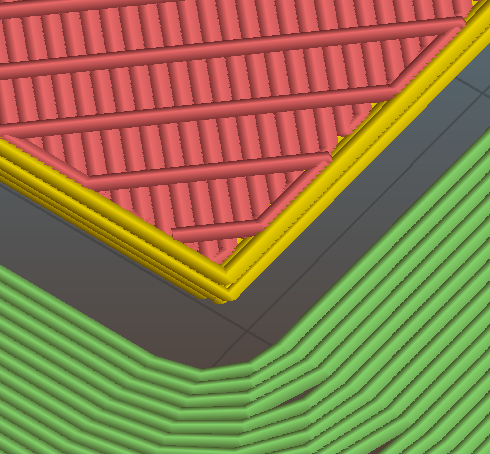

Here are the pics of the layers

barnwell

I started printing some parts fast light with 2 top, bottom and outline layers and with 25% infill all layers are rectilinear at 45 and -45 degrees. The sliced output has the last outer layer (layer 2) and the first inner layer (layer 3) in the same direction which is not so bad BUT At the top the l...

barnwell

Well it is better now. I ran the part thru a mesh fixer (I can't remember which one) ( the S3D computer died in the middle of this) and it still had the problem I ran it thru S3D V2 on my backup computer (not much of a backup since it was out of date) and it worked ok. Exported it from SolidWorks ag...

barnwell

when I slice a part there are extra printed stuff generated that is not in the stl file I have uploaded the factory file, a picture of the result and the stl file. The stl file was generated from solidworks.

I have a similar thing happen with another part.

anybody have any thoughts
