Sigge

So after a good night's sleep I figured it out...

The labeling on the cables for the X & Y connections were wrong from factory...
I switch them and now it prints on the whole surface with original CR 10 mini configuration from the assistant.

Thanx for the tip horst!

/Sigge

Sigge

Hi, I have a CR10 mini and downloaded the CR10 mini configuration via the assistant. To make it work with my printer I had to change the X and Y build volume dimensions. X from 300 to 220 mm Y from 220 to 300 mm Z 300 mm When I print something big nothing gets printed beyond Y 230 mm, i.e. 70 mm sho...

Sigge

I just updated my Nvidia graphic driver to version 382.05 and my Simplify3D 3.1.1. crashed.
I managed to fix this by going back to driver 381.89.

Hope this helps anyone else with similar problem...

Sigge

Sigge

My seller got back very quickly and pointed out that I had the correct distance for the overlaying frame to one of the short ends, but on the wrong side... :oops: So now the offset issue has been solved :D And I have learned a ton about 3D printing that will help me in my endeavours! :D Thank you al...

Sigge

Thank you for all your help, I have contacted seller and they will send firmware.
Maybe they can understand what's happening...I will post an update when I know more.

Sigge

Sigge

When I send G28 and then a G30 and then send "G1 X0 Y0 F3000" the head moves to the bottom left corner of the metal bed.
You can see the "V" shaped markings made by the head in the alu bed on my photo.

Sigge

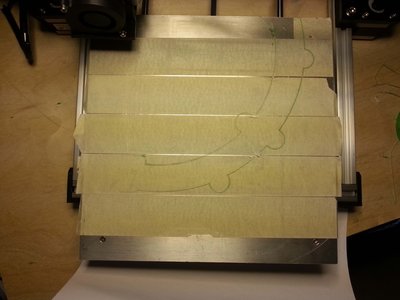

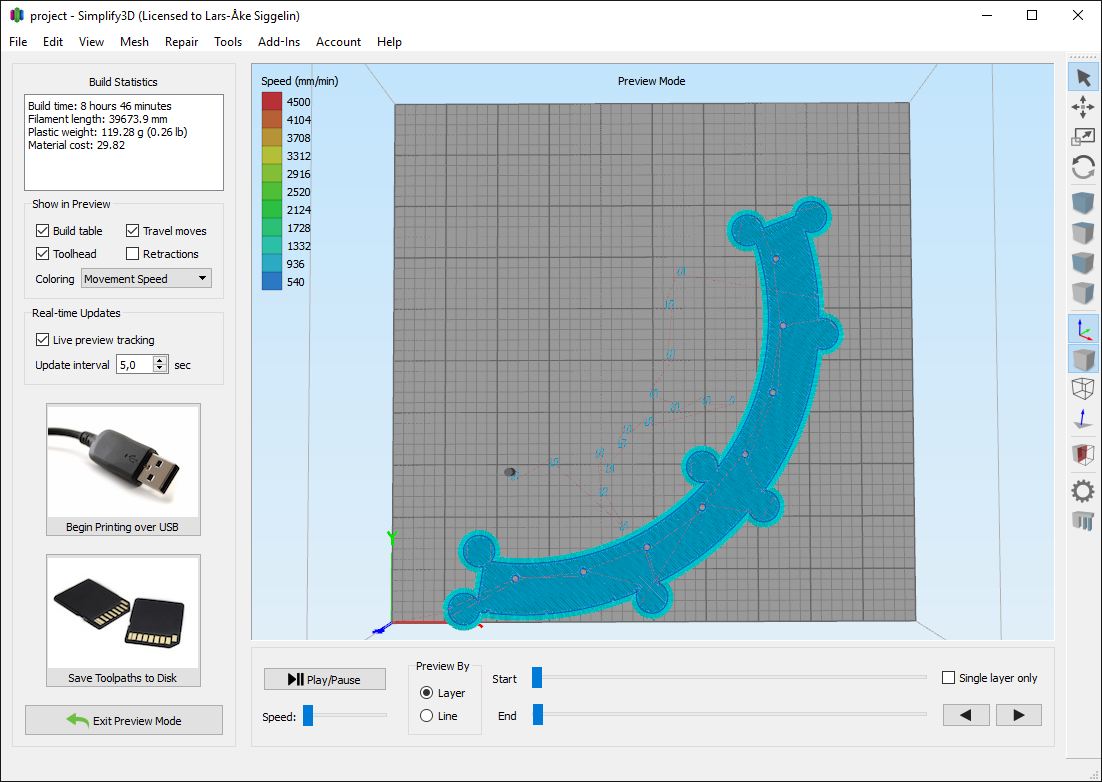

Here are 2 pictures showing my problem, what I set in the Simplify3D

and what I get on my printer...

And the end stops are working properly...as described before...

Sigge

I have attached the factory file. I get a feeling that my printer doesn't realize that the bed surface is greater than 200x200 when the print command is sent...(my bed is 250x250mm). After some more testing I have come to the conclusion that the printer will use the full 250x250, but it is offset by...

Sigge

First, thank you for helping me! :) Sorry for my newbie question, but where do I find the Factory file for my printer? This is what I have in S3D, firmware, for my printer: setExtruderTempGcode,M104 S$ T# stabilizeExtruderTempGcode,M109 S$ T# setBedTempGcode,M140 S$ stabilizeBedTempGcode,M190 S$ rep...

Sigge

Thanks for the reply! When it comes to the autoleveller I managed to get it working sort of... The reason it is not working properly is because my 3mm alu printbed is concave.. :x So until I have a replacement I have to use manual leveling. Anyone know where to find a god level 3mm alu bed 250x250mm...
