by 3DWithUs
Fri Jun 30, 2017 12:38 pm
Forum: General Discussion and Tips
Topic: Hole or Boolean difference option/setting?
Replies: 2
Views: 2656

Jump to post

Re: Hole or Boolean difference option/setting?

dkightley wrote:As S3D is a 3D printer slicer package, and not a CAD package, then its safe to say that S3D cannot do CAD software functions.
Ok, thanks. Then it is our "New Feature" request.
I know we may asking too much, but we are too lazy to open CAD for the silly holes like that :D .
by 3DWithUs
Fri Jun 30, 2017 11:12 am
Forum: General Discussion and Tips
Topic: Hole or Boolean difference option/setting?
Replies: 2
Views: 2656

Jump to post

Hole or Boolean difference option/setting?

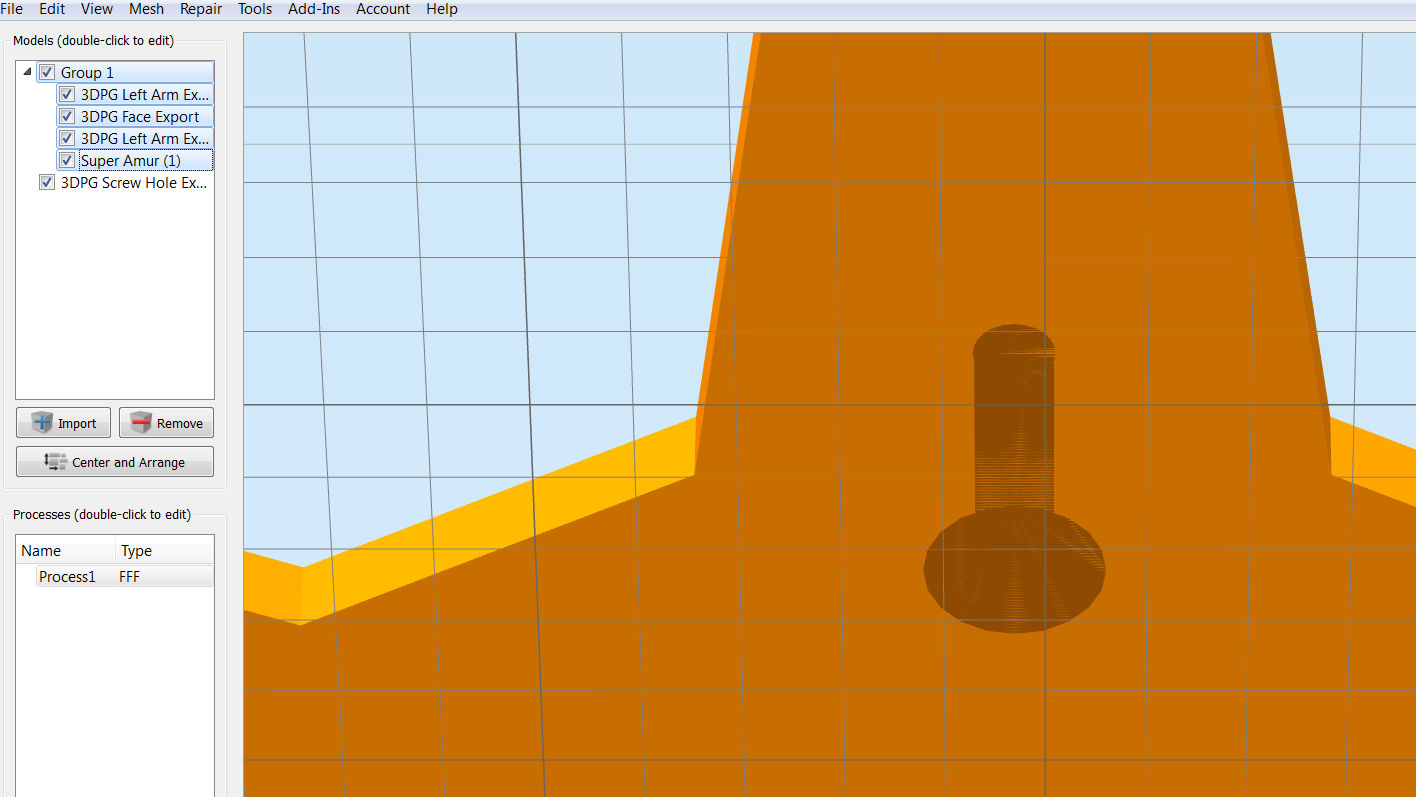

Is it possible to cut off the object from the object? In Meshmixer it is called the Boolean difference in Tinkercad just a Hole.

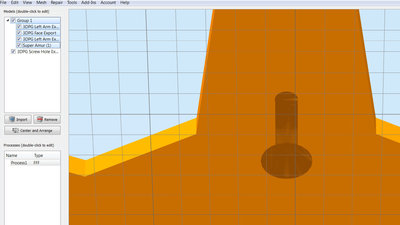

Hole S3d.jpg
by 3DWithUs
Fri Jun 16, 2017 4:56 am
Forum: General Discussion and Tips
Topic: Skirt/brim under supports - is it possible?
Replies: 0
Views: 1147

Jump to post

Skirt/brim under supports - is it possible?

Hi, we love the skirt/brim option. But sometimes to make sure that skirt/brim covers the support area we have to apply a big amount of skirt outlines. Is there a way around it? Pinky & Simplify3D Brim.jpg Please check the picture above, we wish that skirt/brim could be under all supports base. W...
by 3DWithUs
Sat Mar 11, 2017 6:00 am
Forum: General Discussion and Tips
Topic: Please help to add support settings
Replies: 6
Views: 3230

Jump to post

Re: Please help to add support settings

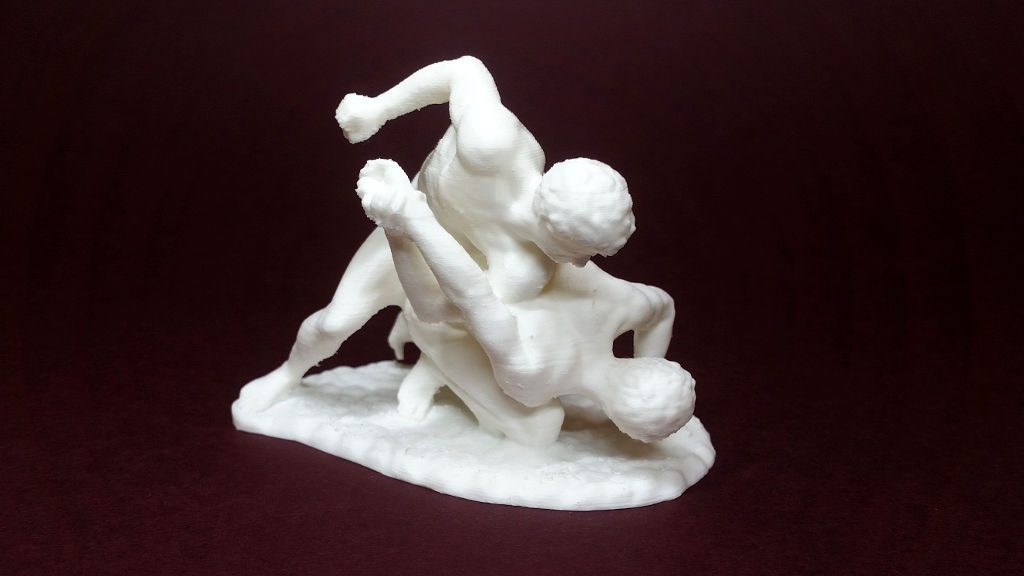

It is a 3D scanned model from Scan The World on MyMiniFactory https://www.myminifactory.com/object/two-wrestlers-in-combat-23491 Not sure how to use separation layers. We are going to try this support setting in our next print. We added a little to "Extra Inflation Distance" (0.5mm) And 4 ...
by 3DWithUs
Sat Mar 11, 2017 3:40 am
Forum: General Discussion and Tips
Topic: Please help to add support settings
Replies: 6
Views: 3230

Jump to post

Re: Please help to add support settings

I don't know your printer, but I think your problem ist only to solve by using of water-soluble support and therefore you need a dual-head printer. If not, it rests only the posibility to turn the model so that the face is upside or print only separate parts and glue them together. Regards horst.w,...
by 3DWithUs
Sat Mar 11, 2017 3:17 am
Forum: General Discussion and Tips
Topic: Please help to add support settings
Replies: 6
Views: 3230

Jump to post

Please help to add support settings

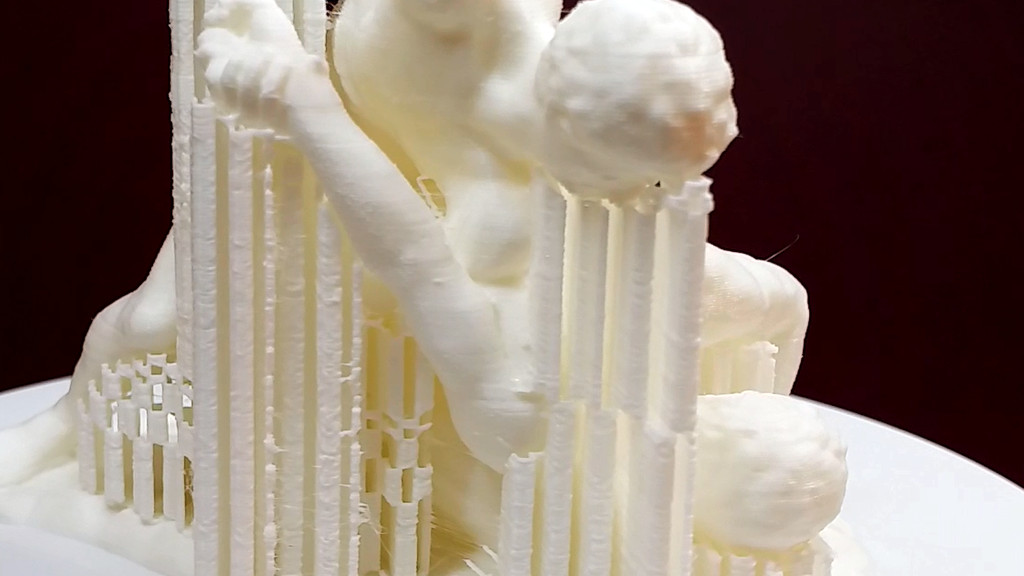

We love this object, but unfortunately, we need to place supports in the face area. Are there any recommended settings to decrease the damage to the face? We use Original Prusa i3 MK2.

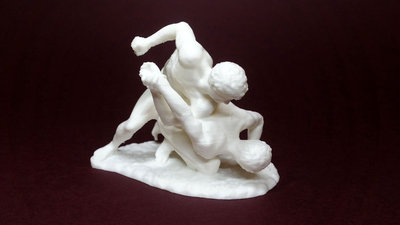

Two Wrestlers
Two Wrestlers

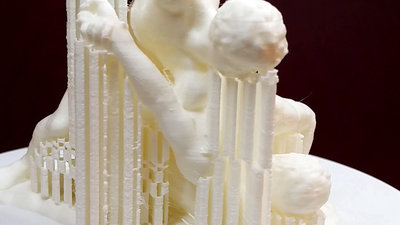

Face damaged by support
Face damaged by support
by 3DWithUs
Tue Mar 07, 2017 7:45 am
Forum: Feature Requests
Topic: Hairy Prints Feature
Replies: 5
Views: 4163

Jump to post

Re: Hairy Prints Feature

Interesting. I'm used to try to get rid of the hairs on my prints (plastic that oozes when doing travel movements), but in this case, you want to intentionally create the hairs? I'm guessing this would be for creative aesthetic reasons? Hairy prints are booming at the moment. If you go on twitter a...
by 3DWithUs
Mon Mar 06, 2017 4:12 am
Forum: Feature Requests
Topic: Hairy Prints Feature
Replies: 5
Views: 4163

Jump to post

Hairy Prints Feature

Hi Simplify3D, We were discussing on Twitter and on other social platforms that it could be great to have "Hairy Prints" option in a slicer. Let's say, users can highlight the area with something and then hair will appear. "Hair" is actually created by bridging that may stick to ...
