Multiple Processes = multiple floors\roofs

Sat Oct 10, 2015 6:20 pm

I really enjoy the ability to created multiple processes per print to change settings as needed.

That being said, there's one area that is either broken, or I'm missing 'the button' to fix it: Every time you switch from one process to the next, it will do a full interior floor\roof at the transition, even where none should exist. The side effect is longer prints, and unnecessary use of materials. Turning off the roof\floor option per process isn't viable, since most of the time those processes still need to print viable roofs & floors on the exterior of the mesh.

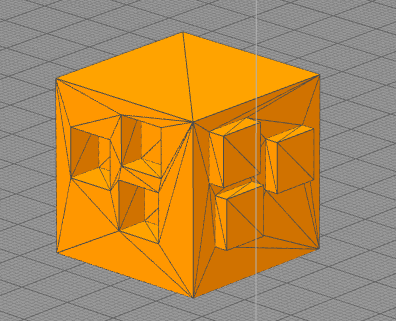

I've made an example object to show this: I want to have three evenly spaced processes on this model (that's 30mm tall):
So I make processA go from 0->10mm, processB from 10-20mm, and processC from 20-30mm.
All processes need to have roofs and floors based on the topology of the mesh. But when I go to slice it, I get this:

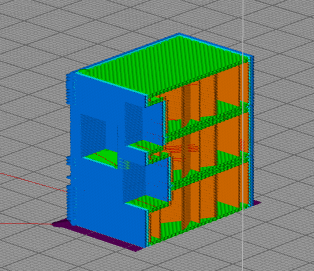

At every transition point, it prints a roof\floor inside the model, where none are needed.

Again: I need to it to print roofs and floors for each profile since the model has roofs and floors for every section of each profile. But why is S3D printing them on the inside of the model?

Am I missing something, or is this a bug?
I've attached my factory file with the 3x profiles & (of course) includes the model.
Attachments
s3d_profileTest.factory
(10.25 KiB) Downloaded 105 times
