[solved] Build table grid view
Posted: Fri Apr 05, 2019 5:20 am
by spilz
Hello,
There is something I don’t like on build table view :
The size of my bed is 200mmx200mm
And the grid which is display like this :
8x8 big squares
Each big squares are 5x5 little squares.
So a big square is 25mm x 25mm (which I really don’t like)
And little square is 5mm x 5mm
I was hopping to have more something like
Big square : 50mm x 50mm
Little square 10mm x 10mm
Is there a way to change it ?
Regards
Re: Build table grid view
Posted: Fri Apr 05, 2019 6:40 am
by wirlybird
I'm not sure if the grid is a real measure or not.
On one of mine the squares seem to line up to the size of the bed but on another printer they don't match at all.
I would like to know if the grids actually are supposed to show a real distance or measure in relation to the bed size.
Re: Build table grid view
Posted: Fri Apr 05, 2019 7:54 am
by spilz
What is the goal of a grid if it can’t be use for scale ?...
Re: Build table grid view
Posted: Fri Apr 05, 2019 8:52 am
by zemlin
I'd also like if 0,0 was an intersection - but as it is the grid is centered on the bed. If I want to place a part at 50,50 there's no line there since my printer bed is 304.8mm square.
Re: Build table grid view
Posted: Fri Apr 05, 2019 10:24 am
by horst.w
I believe to remember to a discution about this problem when I started S3D in 2014.
The grid view is like a gcode-file and the user can change it , but how - I'm sorry
For my Mankati also as for my A8 I have 1 mm-grid in 10 mm frames.
horst.w
GER

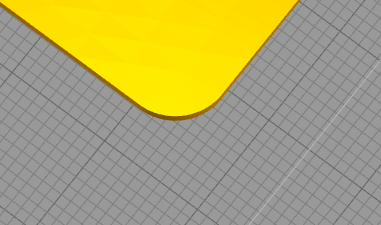

- 1 mm grid.png (18.49 KiB) Viewed 3244 times
Re: Build table grid view
Posted: Fri Apr 05, 2019 10:58 am
by dkightley
Tools menu......Options...….Visualisation tab....there are two fields Grid Line Spacing - major and minor.
Exactly what you want!
Re: Build table grid view
Posted: Fri Apr 05, 2019 11:10 am
by spilz
It’s exactly what I was looking for !! And I didn’t see it
Thanks a lot an sorry for that
