Printersettings Mendel90

[Psike]

Good Evening,

Due to your Productlist the Mendel90 should be included,
but it seems that it is not on the default list.
Due to a lack of knowledge I'm not able to create the profile by myself to get good results.
Is there someone that has a Mendel90 in use and can provide me all necessary informations?
Are there any plans to have a generic profile for Mendel90?
Due to the information on your Page I bought your software.

Thanks for coming back with a solution

BR
Lars

[KeyboardWarrior]

Good Evening,

Due to your Productlist the Mendel90 should be included,
but it seems that it is not on the default list.
Due to a lack of knowledge I'm not able to create the profile by myself to get good results.
Is there someone that has a Mendel90 in use and can provide me all necessary informations?
Are there any plans to have a generic profile for Mendel90?
Due to the information on your Page I bought your software.

Thanks for coming back with a solution

BR
Lars

If you go to Help-->Configuration Assistant then select "Other" that should get you a profile setup. The Mendel settings are very close to the RepRap defaults. Have you ran any prints with those configuration settings yet?

[Psike]

Yep i gave this settings a try and what happened was,
that my Print was placed in the front-left corner and the printer used the wrong positioning.
I wasn't able to fix this not with RepRap defaults nor with others.
The preview shows the print in the middle but as explained it gets printed left-front....
Any Idea?

Thanks
Lars

[DarthRevan]

Yep i gave this settings a try and what happened was,
that my Print was placed in the front-left corner and the printer used the wrong positioning.
I wasn't able to fix this not with RepRap defaults nor with others.
The preview shows the print in the middle but as explained it gets printed left-front....
Any Idea?

Thanks
Lars

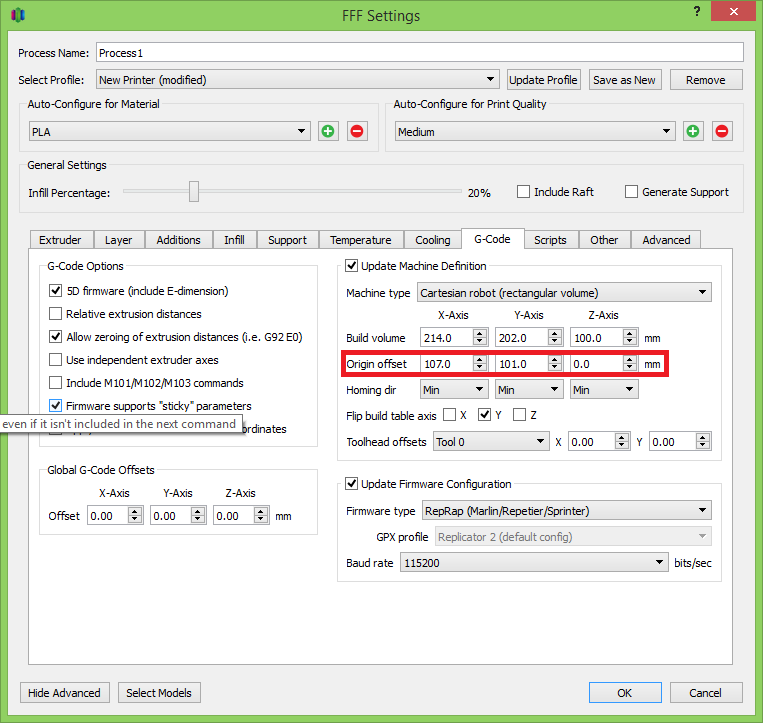

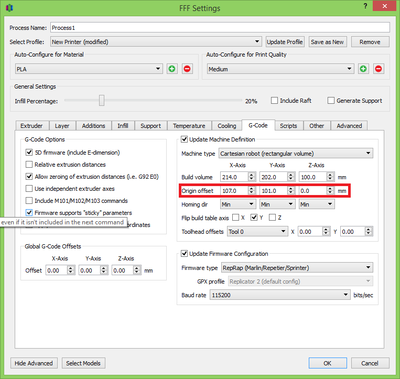

I don't know the exact dimensions of your build plate, but you can center the origin with Origin Offsets.

To center your gcode to your build platform, you should input half of the build plate's length and width for Origin Offset values. For example, if your x axis is 214mm you'll put in 107 for the x origin offset.
