Simplify3D User Forum

12d3

If the print head isn't stopping at the locations of the blobs its not a retraction issue and it is probably over extrusion. When the nozzle reaches those corners its releasing built up pressure. In Process Settings check that your Nozzle Diameter is set correctly, the Extrusion Multiplier is set to...

12d3

Separate Connected Surfaces says "The selected mesh is already a single connected surface." I guess its the mesh like your're saying I didn't design this model from scratch. It is an imported STL from Thingiverse that I pulled into Fusion 360, mesh to BREP so I could modify it, then I used...

12d3

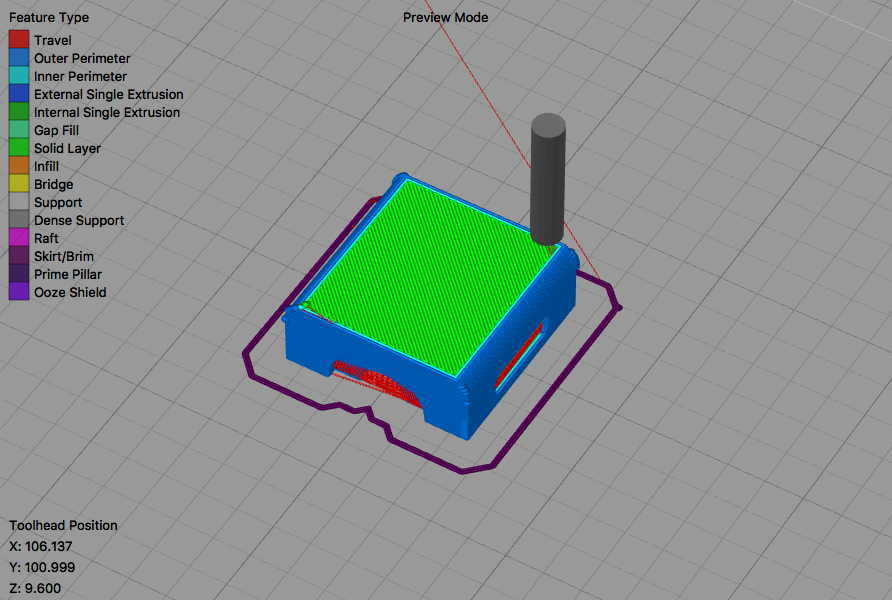

Then 95,96,97 are solid. The actual embossed feature isn't until layer 98

12d3

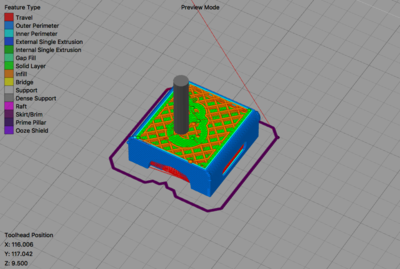

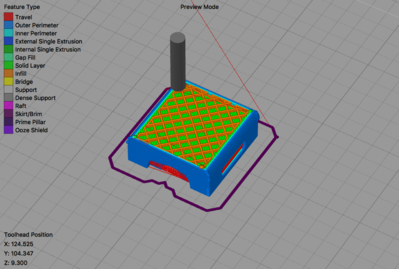

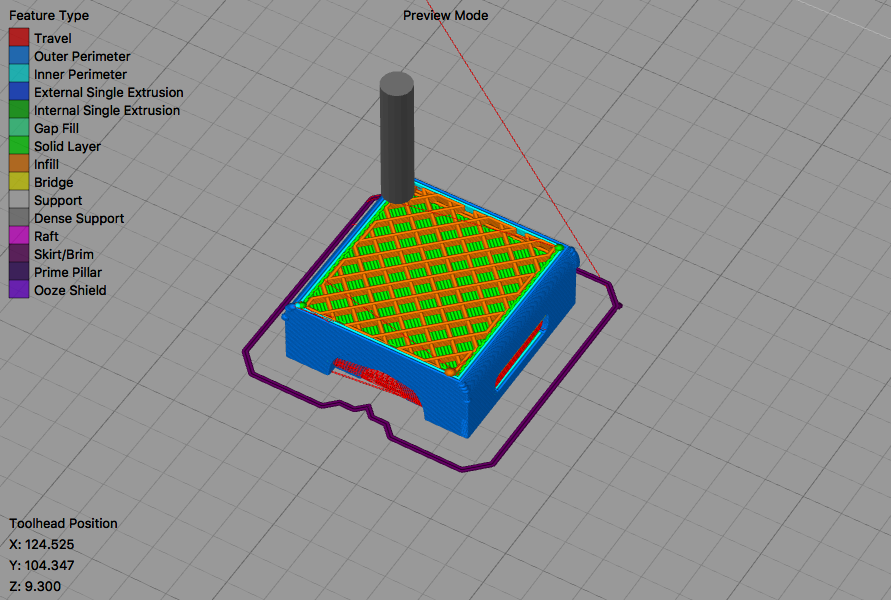

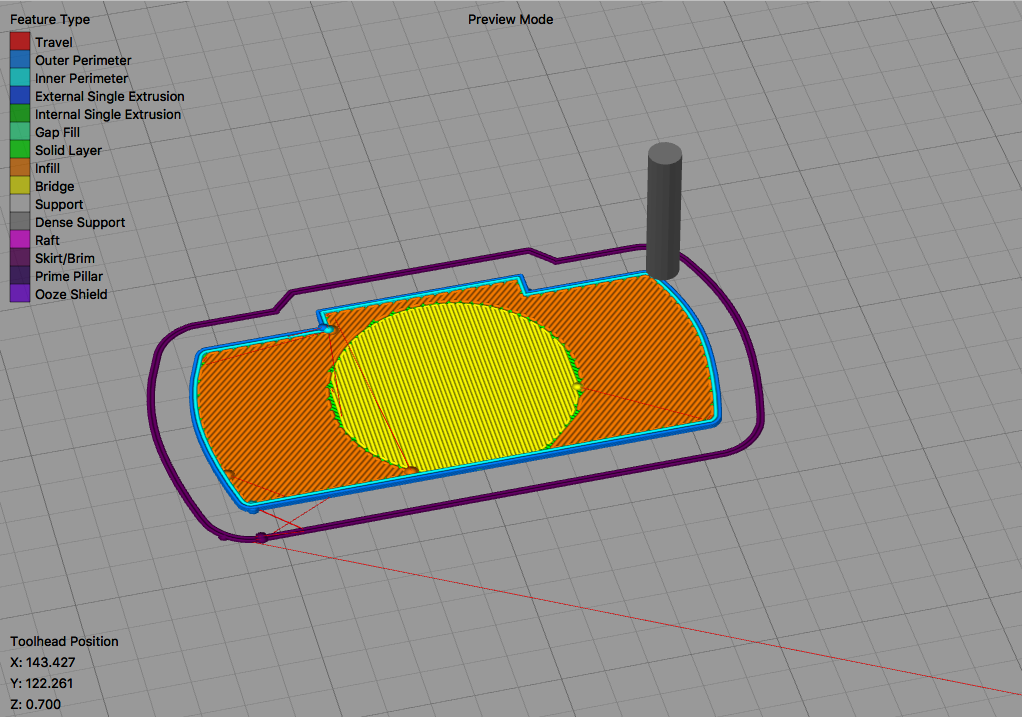

Layers 93 and 94 are like this

12d3

12d3

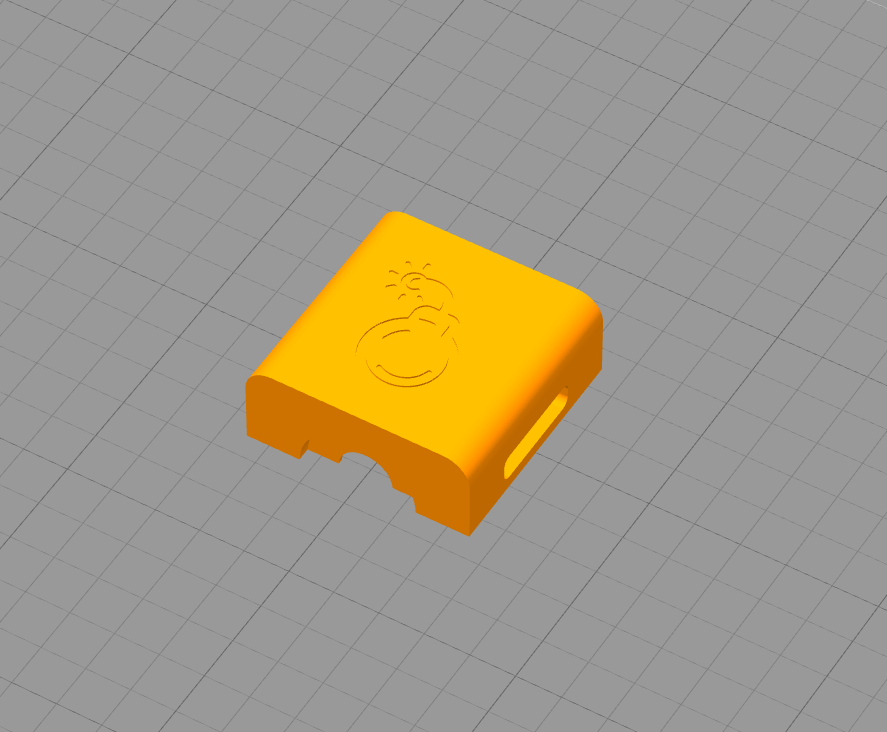

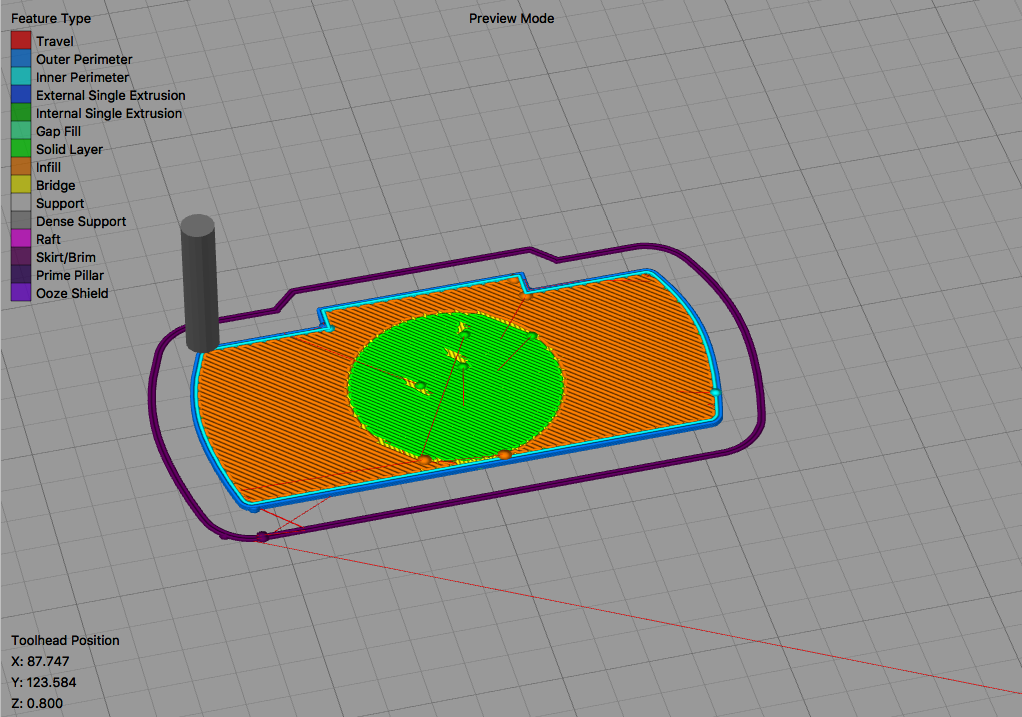

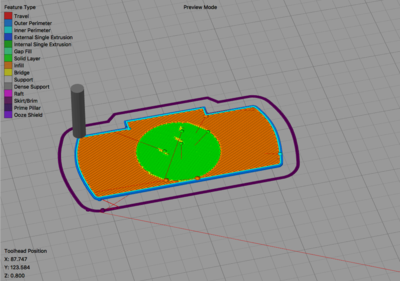

Here's one where it does it on top

12d3

This forums anti spam system must be limiting me to one attachment. Here's the last one.

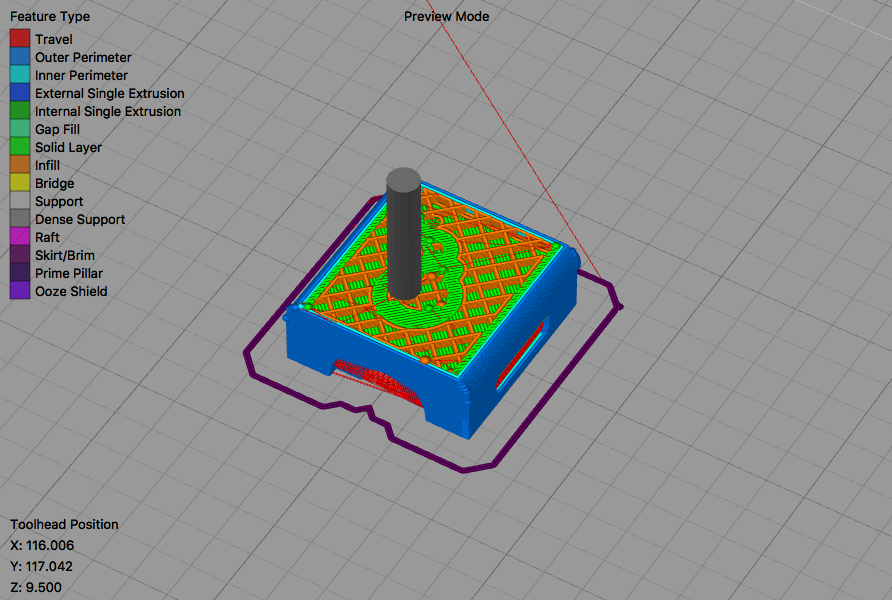

You can see the next solid layer leaves gaps above the eyes for some reason. It does this on the next 3 layers until the solid infill covers everything up.

12d3

Sorry, for some reason the two other attachments never showed up.

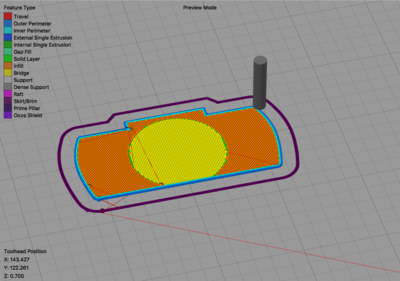

The attachment Screen Shot 2018-03-07 at 10.24.49 PM.png is no longer available

12d3

I've been seeing this occasionally when I have an embossed feature either on top or on bottom of my part. The non-perimeter infill of the embossed features are duplicated for a few layers on the interior of the part even when there's a solid layers in between. In this case after a solid bridge over ...

Search found 9 matches

Re: What I am doing wrong? Blobs!

Re: Weird mirrored features on interiors

Re: Weird mirrored features on interiors

Re: Weird mirrored features on interiors

Re: Weird mirrored features on interiors

Re: Weird mirrored features on interiors

Re: Weird mirrored features on interiors

Re: Weird mirrored features on interiors

Weird mirrored features on interiors
