Manual Support Definition & Generation

Here's the results of a brief investigation I've done on the definition and generation of manual supports.

I set the test up with the following basic parameters:
Nozzle diameter = 0.2mm
Extrusion width (manual) = 0.2mm
Support Infill %age = 100% (initially)
Extra Inflation Distance = 0

I created an "L" shaped block 10mm wide and 20mm both high and deep..this shape then tipped on its nose to form an overhang.

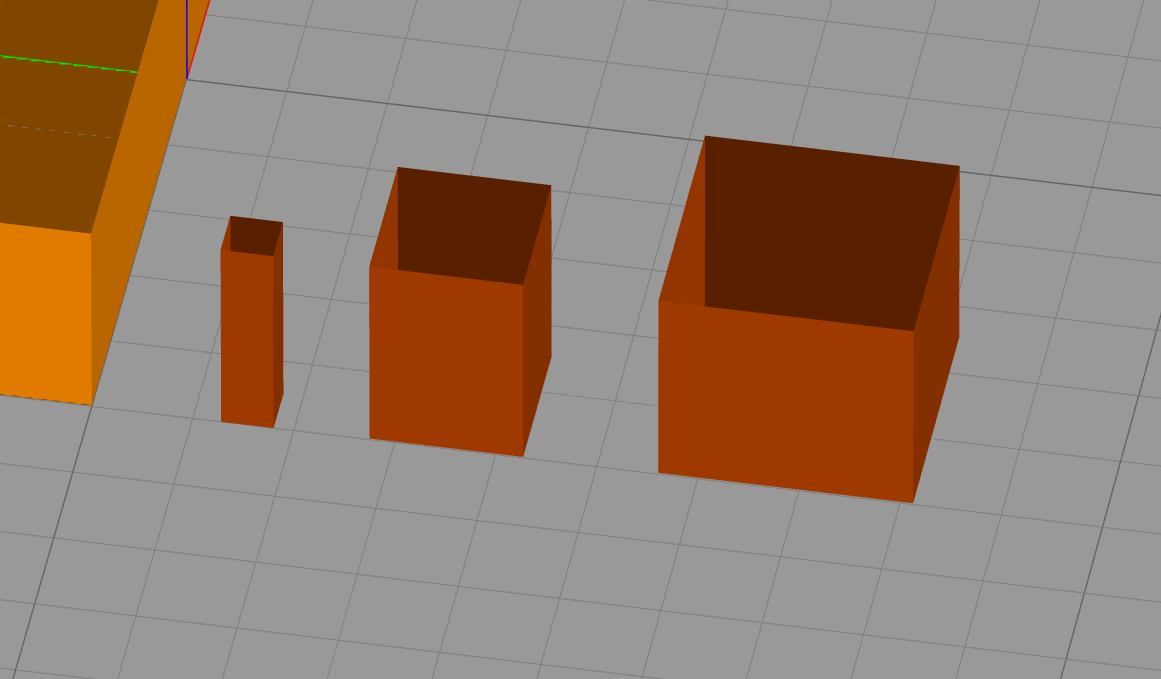

I then added three single columns of manual support, 1mm, 2mm & 3mm left to right...as shown here (with z cross section to make things clearer) :
Observation: The simulated columns are shown smaller than the defined size! The grid on the bed is 0.1mm

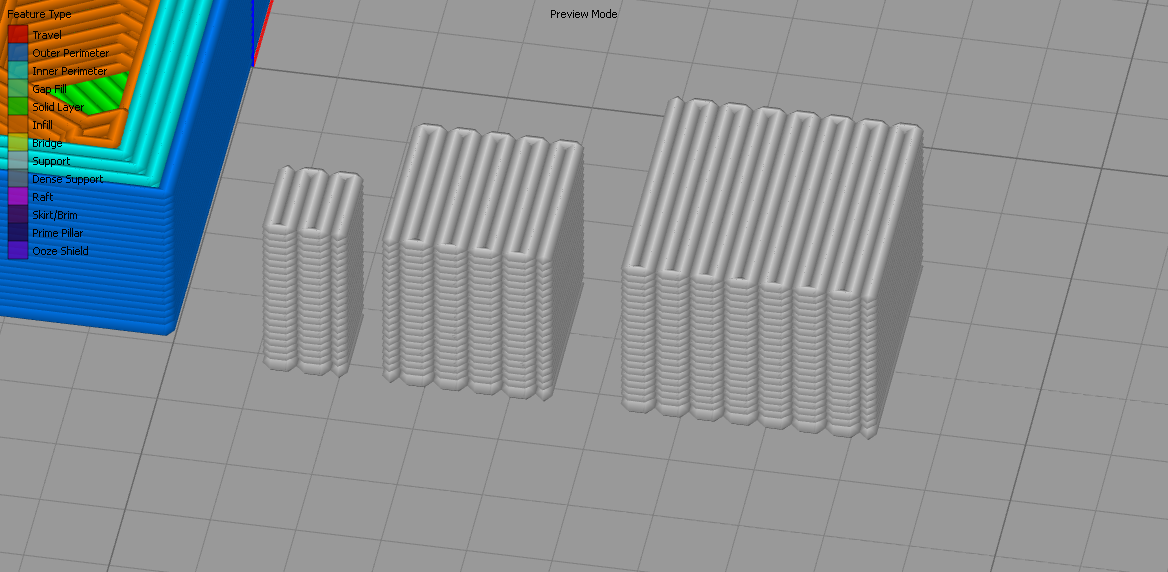

Slice and the Preview view is:
Observation: So far so good. Support generated to cover the full cross section of all three columns...5 lines for the 1.0mm, 10 for the 2.0mm, and 15 lines for the 3.0mm.

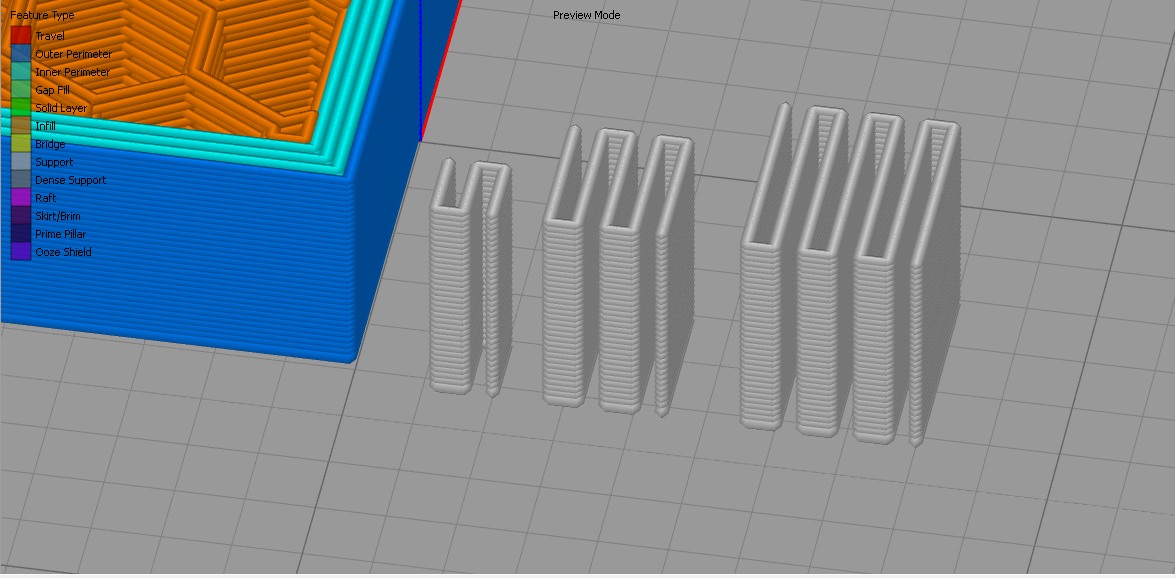

I now lowered the Support Infill %age to 50% and resliced:
Observation: We now have half the number of strips....well almost. Rather than 2.5, 5 and 7.5 (which is not possible), we have 3, 5, and 7. Still looks sensible.

Continued in next post as only three attachments allowed per post.....
Last edited by dkightley on Sun Oct 16, 2016 7:20 pm, edited 1 time in total.
Doug Kightley
Volunteer at the National Tramway Museum http://www.tramway.co.uk
Railway modeller and webmaster at http://www.talkingtgauge.net
User avatar
dkightley
Posts: 2405
Joined: Tue Mar 10, 2015 4:09 pm

Re: Manual Support Definition & Generation

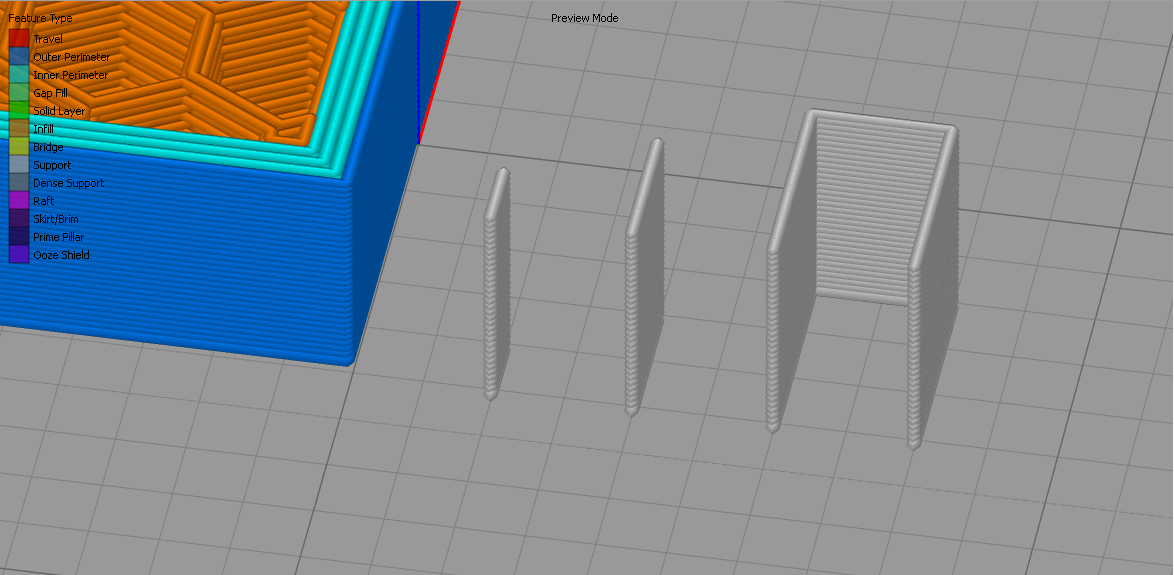

I then reduced the Support Infill %age to 25% and resliced again:
Observation: Starting to look inconsistent. 1 strip for the 1.0mm column, two for the 2.0mm column and 4 for the 3.0mm column. What can be seen is that the extruded support material appears to be placed at multiples of a regular spacing...in this case, a spacing of 0.8mm...one in 4 extrusion widths...25%!

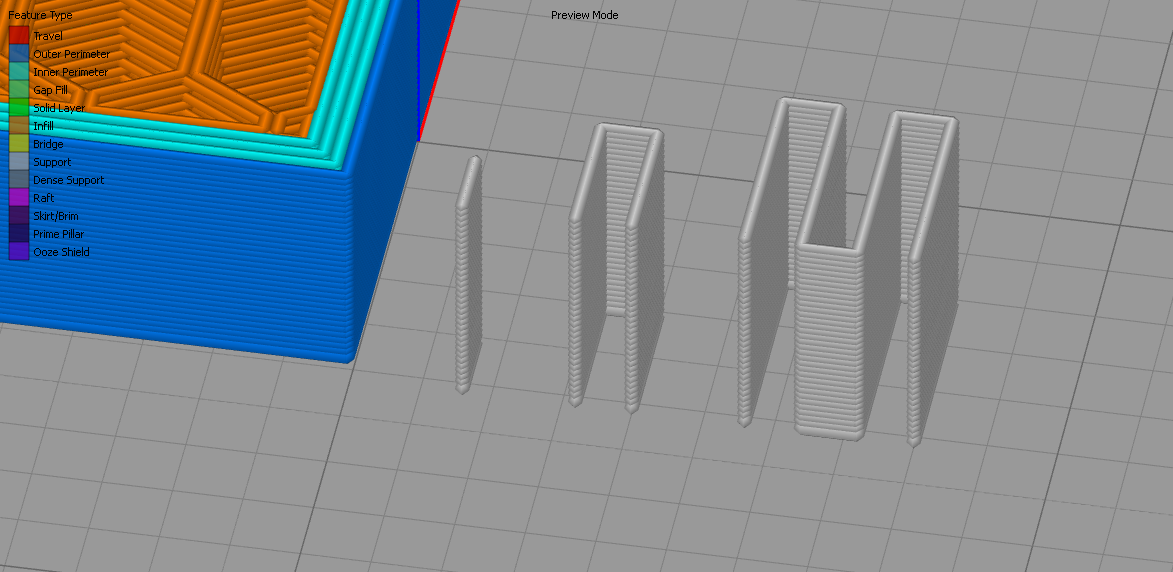

The final test....I reduced the Support Infill %age to 10% and resliced again:
Observation: Looking strange. A BUG! I hear you say!! :roll: :roll: But look closely....extrusions are every 1.0mm....or 10%!!!!

Conclusion: The support is firstly generated according to a single pattern determined by the Infill %age...1 strip then a gap 9 strips wide for 10%, 1 strip then a gap of 4 strips for 25%....and so on. The resultant pattern is compared with the area(s) for which support has be defined as being required....either automatically or manually....and a support extrusion is laid where they overlap.

This method of generating where support should be extruded...to me...seem totally logical, particularly when you start looking at generating support in both the X and Y directions. The only disadvantage is that where you have low infill %ages AND small sized support definitions, the resultant support is not evenly distributed according to the support definition.

Its a good job there are many ways of adjusting the position of manual support to give the desir3ed result....which can be previewed prior to printing.
