Part Rotation and Layer Mismatch

Mon Jun 06, 2016 3:14 pm

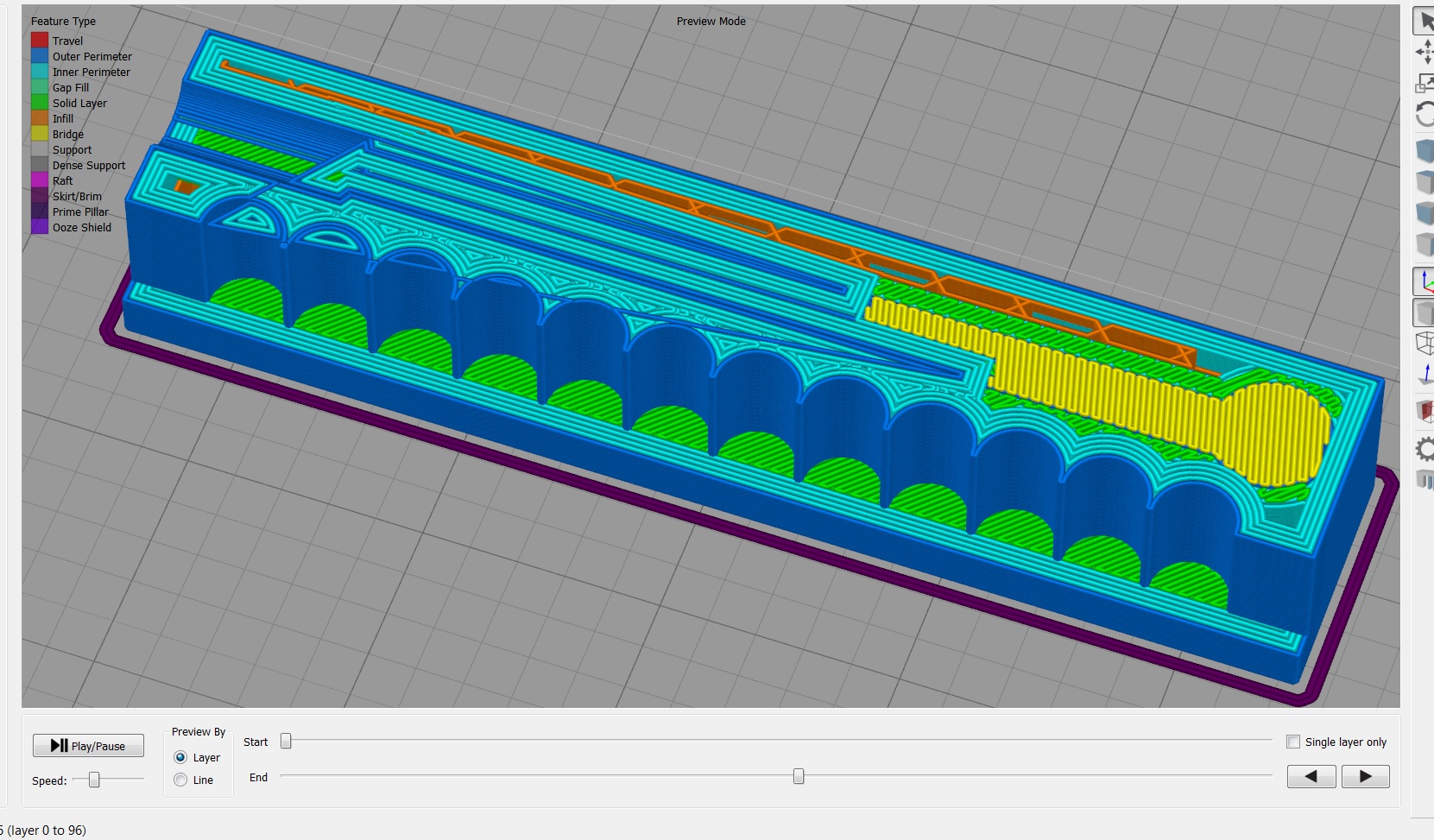

Sliced Part no Rotation.jpg
Part looks good
Sliced Part no Rotation.jpg
Part looks good
Has anyone seen anything similar after rotating a part?

I was able to edit the Gcode file to correct this single layer, but I am pretty sure this should not happen.
Attachments
Sliced Part with Rotation.jpg
Part rotated 180 deg. and resliced. Layer 96 is a mess.

andrewk72
Posts: 161
Joined: Fri Apr 29, 2016 5:43 am

Re: Part Rotation and Layer Mismatch

Tue Jun 07, 2016 6:05 am

Can you post the factory file? Just setup the print and right before you click "Prepare to Print", go to File > Save Factory File. That will make it easier to see what's wrong.

User avatar
dkightley
Posts: 2059
Joined: Tue Mar 10, 2015 4:09 pm

Re: Part Rotation and Layer Mismatch

Tue Jun 07, 2016 7:13 am

What you're seeing is the known issue with S3D not handling minute errors and inconsistencies in the model mesh correctly.

A first try at resolving the issue would be to upgrade to the new release v3.10, which according to the changelog has coding changes specifically to address the type of issue you are experiencing.

If upgrading doesn't improve the slicing when rotated, try altering the layer thickness by 0.001 mm, either up or down, and see if that resolves the slicing issues.

A third way to address this would be to submit your .stl file to the cloud model repair service: https://netfabb.azurewebsites.net/ Import the fixed version and try slicing again.
Doug Kightley
Volunteer at the National Tramway Museum http://www.tramway.co.uk
Railway modeller and webmaster at http://www.talkingtgauge.net

qisautomation
Posts: 3
Joined: Mon Jun 06, 2016 2:53 pm

Re: Part Rotation and Layer Mismatch

Wed Jun 08, 2016 11:39 am

Thank you for the responses. Please find attached the Factory File.
Attachments
Carriage Factory.factory
(78.49 KiB) Downloaded 58 times

CompoundCarl
Posts: 2005
Joined: Wed Aug 05, 2015 7:23 am

Re: Part Rotation and Layer Mismatch

Thu Jun 09, 2016 7:55 am

It's slicing fine for me. Are you using the latest 3.1.0 version? They added some more automatic repair stuff in that version, so it's a lot better at dealing with files that may have small errors like this that were only affecting one single layer.

If you're still using an older version, go try the new one and let us know how that works

razster
Posts: 54
Joined: Wed Aug 05, 2015 4:48 pm

Re: Part Rotation and Layer Mismatch

Fri Jun 10, 2016 6:34 am

slicing fine for me too in 3.1 :D

qisautomation
Posts: 3
Joined: Mon Jun 06, 2016 2:53 pm

Re: Part Rotation and Layer Mismatch

Fri Jun 10, 2016 11:25 am

Yes, in 3.1 all is well. Thanks for the assistance.
